船(chuan)用截止閥當前位置：首頁 > 產品中心 > 船用閥門 > 船用截止閥

船用內螺紋青銅截止閥

產品名稱：久久精品中文悶騷內射:船用內螺紋青銅截止閥
產品型號：CB/T309-1999
產品口徑：
產品壓力：
產品材質：
聯系電話：021-51061127
聯系傳真：021-51062214
Email：fashengfamen@126.com
聯系人：陳云非
聯系手機：18217570461
QQ：203398752
公司名：上海閥盛閥門制造有限公司
帳號：03416900040048386
開戶行：農行上海水清南路支行
售后承諾：質保一年，質量三包：包修、包換、包退。

上(shang)海(hai)閥(fa)(fa)盛閥(fa)(fa)門制造有限公司主要(yao)生產船(chuan)(chuan)用(yong)(yong)內(nei)(nei)(nei)螺(luo)(luo)(luo)紋(wen)(wen)青(qing)(qing)銅(tong)(tong)截(jie)(jie)止(zhi)(zhi)(zhi)(zhi)閥(fa)(fa)，可提供船(chuan)(chuan)用(yong)(yong)內(nei)(nei)(nei)螺(luo)(luo)(luo)紋(wen)(wen)青(qing)(qing)銅(tong)(tong)截(jie)(jie)止(zhi)(zhi)(zhi)(zhi)閥(fa)(fa)價格，船(chuan)(chuan)用(yong)(yong)內(nei)(nei)(nei)螺(luo)(luo)(luo)紋(wen)(wen)青(qing)(qing)銅(tong)(tong)截(jie)(jie)止(zhi)(zhi)(zhi)(zhi)閥(fa)(fa)說(shuo)明書，船(chuan)(chuan)用(yong)(yong)內(nei)(nei)(nei)螺(luo)(luo)(luo)紋(wen)(wen)青(qing)(qing)銅(tong)(tong)截(jie)(jie)止(zhi)(zhi)(zhi)(zhi)閥(fa)(fa)實物圖，船(chuan)(chuan)用(yong)(yong)內(nei)(nei)(nei)螺(luo)(luo)(luo)紋(wen)(wen)青(qing)(qing)銅(tong)(tong)截(jie)(jie)止(zhi)(zhi)(zhi)(zhi)閥(fa)(fa)結(jie)構圖，船(chuan)(chuan)用(yong)(yong)內(nei)(nei)(nei)螺(luo)(luo)(luo)紋(wen)(wen)青(qing)(qing)銅(tong)(tong)截(jie)(jie)止(zhi)(zhi)(zhi)(zhi)閥(fa)(fa)外形(xing)尺(chi)寸，船(chuan)(chuan)用(yong)(yong)內(nei)(nei)(nei)螺(luo)(luo)(luo)紋(wen)(wen)青(qing)(qing)銅(tong)(tong)截(jie)(jie)止(zhi)(zhi)(zhi)(zhi)閥(fa)(fa)執行(xing)標準，船(chuan)(chuan)用(yong)(yong)內(nei)(nei)(nei)螺(luo)(luo)(luo)紋(wen)(wen)青(qing)(qing)銅(tong)(tong)截(jie)(jie)止(zhi)(zhi)(zhi)(zhi)閥(fa)(fa)工作原理，船(chuan)(chuan)用(yong)(yong)內(nei)(nei)(nei)螺(luo)(luo)(luo)紋(wen)(wen)青(qing)(qing)銅(tong)(tong)截(jie)(jie)止(zhi)(zhi)(zhi)(zhi)閥(fa)(fa)作用(yong)(yong)特點。

船用內螺紋青銅截止閥性能規范Technical Data

型式Type	名稱Name	公稱壓力Nominal Pressure(MPa)	公稱通徑Nominal Diameter(mm)
A	直通截止閥	1.6	6 - 50
B	直角截止閥		15 - 50

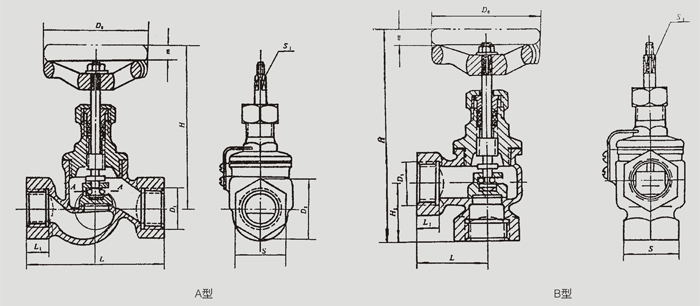

船用內螺紋青銅截止閥基本尺寸Dimensions

公稱	結構尺寸Structure Dimension					螺紋接頭Thread Joint			手輪Hand Wheel		升程	參考重量
通徑DN	L		H		Hi	Di	S	L1	Do	Si	Lift Range	Weight(kg)
(mm)	A型	B型	A型	B型							m	A型	B型
6	65		86			G1/4	19	10	50	6	5	0.35
10	75		88			G3/8"	22	12	50	6	5	0.44
15	84	35	100	125	35	G1/2	27	14	50	6	6	0.56	0.55
20	95	40	112	143	40	G3/4"	36	16	65	7	7	0.90	0.91
25	110	45	125	158	45	G1	41	18	80	8	8	1.26	1.20
32	130	54	139	176	54	G11/4"	50	20	80	8	8	2.02	2.02
40	150	65	155	220	65	G1J／2	60	22	120	11	14	2.93	2.93
50	180	80	175	283	80	G2"	70	24	120	11	15	4.37	3.83
