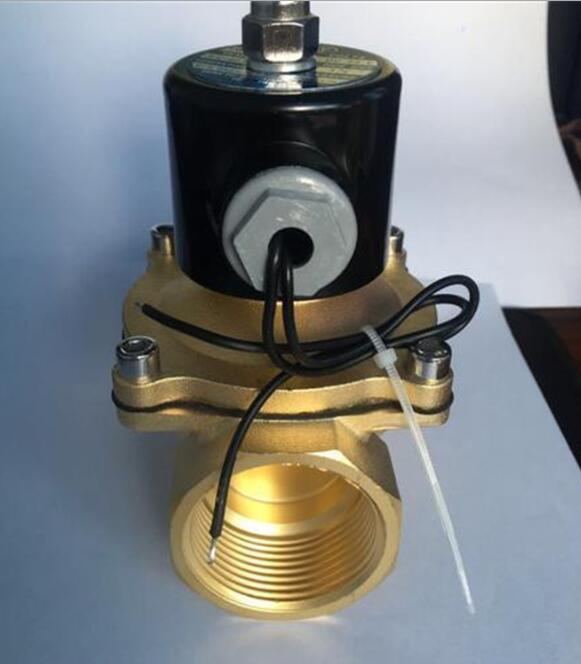

上海閥(fa)(fa)盛(sheng)閥(fa)(fa)門(men)制(zhi)造(zao)有限公司主要生(sheng)產低(di)(di)(di)(di)功(gong)(gong)(gong)率(lv)氣(qi)(qi)(qi)液(ye)(ye)(ye)(ye)電(dian)磁(ci)(ci)(ci)閥(fa)(fa)，可提供低(di)(di)(di)(di)功(gong)(gong)(gong)率(lv)氣(qi)(qi)(qi)液(ye)(ye)(ye)(ye)電(dian)磁(ci)(ci)(ci)閥(fa)(fa)價格(ge)，低(di)(di)(di)(di)功(gong)(gong)(gong)率(lv)氣(qi)(qi)(qi)液(ye)(ye)(ye)(ye)電(dian)磁(ci)(ci)(ci)閥(fa)(fa)說明書(shu)，低(di)(di)(di)(di)功(gong)(gong)(gong)率(lv)氣(qi)(qi)(qi)液(ye)(ye)(ye)(ye)電(dian)磁(ci)(ci)(ci)閥(fa)(fa)實(shi)物(wu)圖，低(di)(di)(di)(di)功(gong)(gong)(gong)率(lv)氣(qi)(qi)(qi)液(ye)(ye)(ye)(ye)電(dian)磁(ci)(ci)(ci)閥(fa)(fa)結構圖，低(di)(di)(di)(di)功(gong)(gong)(gong)率(lv)氣(qi)(qi)(qi)液(ye)(ye)(ye)(ye)電(dian)磁(ci)(ci)(ci)閥(fa)(fa)外形尺寸，低(di)(di)(di)(di)功(gong)(gong)(gong)率(lv)氣(qi)(qi)(qi)液(ye)(ye)(ye)(ye)電(dian)磁(ci)(ci)(ci)閥(fa)(fa)執行標(biao)準，低(di)(di)(di)(di)功(gong)(gong)(gong)率(lv)氣(qi)(qi)(qi)液(ye)(ye)(ye)(ye)電(dian)磁(ci)(ci)(ci)閥(fa)(fa)工作(zuo)(zuo)原理(li)，低(di)(di)(di)(di)功(gong)(gong)(gong)率(lv)氣(qi)(qi)(qi)液(ye)(ye)(ye)(ye)電(dian)磁(ci)(ci)(ci)閥(fa)(fa)作(zuo)(zuo)用特(te)點。

低功率氣液電磁閥技術說明：

適用介質：水、氣、油

介質溫度：-10～80℃

動作方式：先導式

工作壓差：見下表（常閉）

閥體材料：黃銅（HPb59-1）

膜片密封，材料：丁腈橡膠

線圈保護等級：塑封線圈IP65

電壓波動范圍：AC -15%～10% DC -5%～10%

低功率氣液電磁閥主要技術參數 （注：介質溫度最高120℃時請選用氟橡膠膜片密封）： 產品型號 流量孔徑（mm） 螺紋G 工作壓差（bar） Cv值 A B （mm） （mm） RSQ-15 13.5 G3/8″ G1/2″ 0.5～16 4.5 66 82 RSQ-20 18 G3/4″ 0.5～12 5.8 79 89 RSQ-25 24 G1″ 0.5～12 14 105 106
